Multi-Channel Detector for Wireless Protocols - Protect 1207i DD1207

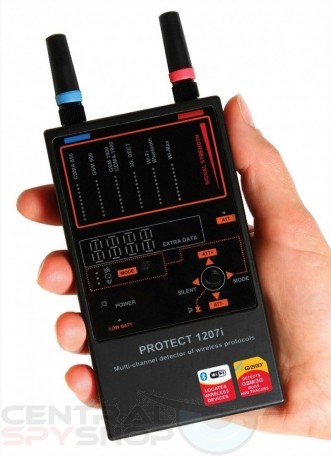

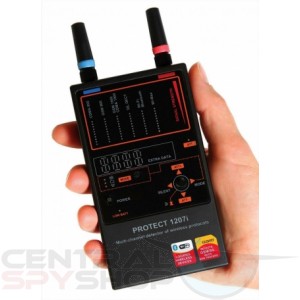

Multi-Channel Detector - 1207i

The Protect 1207i a reliable tool for tracing different digital transmissions such as GSM, Bluetooth and other wireless transmissions (Cellphones and GPS transmissions). The sensitivity of a common RF detector (bug detector) is spread along a wide frequency range, usually 3, or even 6-7 GHz. This means the common detector cannot detect such weak and non-continuous signals as Bluetooth, Wi-Fi or Wi-Max. Even more powerful signals like GSM-1800 are also hard to detect because of their low sensitivity at higher frequency ranges.

Each detection type has its own bar graph to show signal strength. There is an attenuator button to use when honing in on a signal. In “display mode” when a signal is detected the signal type will be shown in the “extra data” display. The CSSDD1207 detection devices this unit also has silent, listen, visual, and vibration mode.

-Portable device for the inspection and location of wireless sources

-6 channels of detection for different kinds of protocols

-Detection of GSM/CDMA/3G

-Detection of Bluetooth/Wi-Fi/Wi-Max

-Can be used for tracing both regular sources and illegal eavesdropping  devices

-6 bar graphs with 10-segments each, for accurate location of RF sources

-4 modes: Silent, Vibration, Visual and Listen

-2 levels of sensitivity (attenuator)

-Extra display shows which signal type has been detected

-Durable metallic body

-Microprocessor controlled

-Setup mode with selection the threshold level for vibration.

Detect the following kinds of bugging devices:

-GSM baby-monitors/GSM alarm/GSM bugs

-GSM/GPRS/EDGE/3G video cameras

-GSM Spy phones

-GPS Trackers

-Bluetooth bugging devices

-Spy phones with Bluetooth/Wi-Fi

-Wi-Fi/Wi-Max bugging devices

-Wireless videocameras 2.4 Ghz

Detection range is 30 feet

Bluetooth, Wi-Fi 2400-2480

• CDMA 824-849 MHz

• Detection range is 30 feet

• Wi-Max 3000-7000 MHz

•Antenna 2 Omni-directional antennas

•Box Size 7 x 5 x 1.50

•Detection distance 1-10 meters

•Detects CDMA, GSM, WCDMA/3G, Bluetooth/Wi-Fi, and Wi-Max

•Frequency range

•GSM (DCS) 1710-1790 MHz

•GSM 880-920 MHz

•operation time 10-15 hours

•power 2 AAA

•Unit Size 2.75 x 4.75 x .50

•WCDMA, 3G, GSM (PCS), DECT 1920-2000 MHz

•Weight 1.00
